Din En 10297 Seamless Steel Tube Mechanical With Black Painted Surface

Minimum Order Quantity : 5Tons Price : negotiable
Packaging Details : Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. Delivery Time : 30-45 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 2000Tons per Year
Place of Origin: ZHEJIANG, CHINA Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949 Model Number: DIN EN 10297

Detail Information

Keyword: Seamless Steel Tubes Standard: DIN EN10297, DIN 1626, DIN 17175, API 5CT, API 5DP Etc
Material: 10#, 20#, 45#, 16Mn, Q195, Q235 Etc Surface: Black Painted
Technique: Cold Drawn Shape: Round
OD: 6-813 Mm WT: 0.5-100 Mm
End Protector: Plastic Pipe Cap Usage: Mechanical And General Engineering
High Light:

precision stainless steel tubing

,

seamless carbon steel tube

Product Description

TORICH DIN EN 10297 Seamless Steel Tubes for Mechanical Application



Product Description:

OD: 6-813 mm

WT: 0.5-100mm

Length: 1-12m

Material: 10#, 20#, 45#, 16Mn, Q195, Q235, Q345


Delivery condition:
- Fine Grain Steel: Steel having an austenitic/ferritc grain size equal to or finer than 6 when measured in accordance with EURONORM103

- Normalizing Rolling: A rolling process in which the final deformation is carried out in a certain temperature range leading to a material condition equivalent to that obtained after normalizing so that the specified values of the mechanical properties are retained even after normalizing (+N)

- As Rolled: Formed after heating into the austenitic region without subsequent heat treament (+AR)

- Annealing: Heat treatment at a temperature slightly below AC1 (+A)

- TH Treatment: Heat treatment with the object of achieving a hardness within a specified range (+TH)

- FP Treatment: Heat treatment with the object of producing a ferritic and pearlitic structure and achieving a hardness within a specified range (+PH)

- Employer: Organization for which the person works on a regular basis

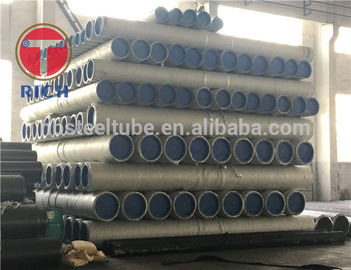

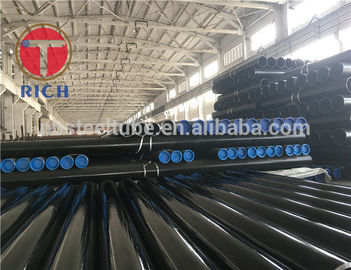

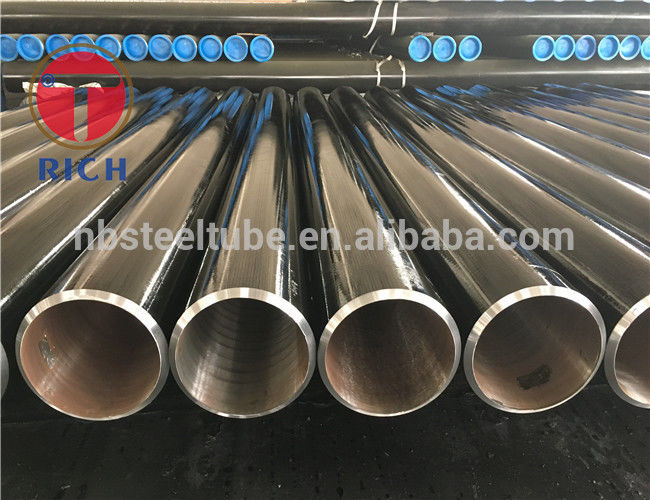

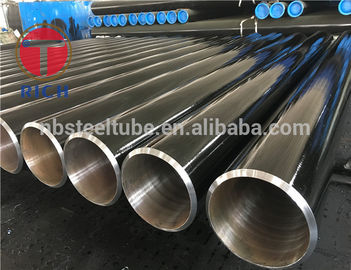

Product Picture:

PIC_20161202_150102_B47PIC_20161202_150109_47CED8890AF139A7CDF72DBF3710C65FB8B



Chemical Composition for tubes made of non-alloy special steel in % by mass:

Steel Grade C Si Mn P S
Steel name Steel number min max min max min max max max
C22E 1.1151 0.17 0.24 - 0.40 0.40 0.70 0.035 0.035
C35E 1.1181 0.32 0.39 - 0.40 0.50 0.80 0.035 0.035
C45E 1.1191 0.42 0.50 - 0.40 0.50 0.80 0.035 0.035
C60E 1.1221 0.57 0.65 - 0.40 0.60 0.90 0.035 0.035
38Mn6 1.1127 0.34 0.42 0.15 0.35 1.40 1.65 0.035 0.035



Chemical Composition for tubes made from alloy special steel in % by mass:

Steel Grade C Si Mn P S Cr Mo Ni
Steel name Steel number min max min min max max max min max min max min max
41Cr4 1.7035 0.38 0.45 0.40 0.60 0.90 0.035 0.035 0.90 1.20 - - - -
25CrMo4 1.7218 0.22 0.29 0.40 0.60 0.90 0.035 0.035 0.90 1.20 0.15 0.30 - -
30CrMo4 1.7216 0.27 0.34 0.35 0.35 0.60 0.035 0.035 0.80 1.15 0.15 0.30 - -
34CrMo4 1.7220 0.30 0.37 0.40 0.60 0.90 0.035 0.035 0.90 1.20 0.15 0.30 - -
42CrMo4 1.7225 0.38 0.45 0.40 0.60 0.90 0.035 0.035 0.90 1.20 0.15 0.30 - -
36CrNiMo4 1.6511 0.32 0.40 0.40 0.50 0.80 0.035 0.035 0.90 1.20 0.15 0.30 0.90 1.20
30CrNiMo8 1.6580 0.26 0.34 0.40 0.30 0.60 0.035 0.035 0.80 2.220 0.30 0.50 1.80 2.20
41NiCrMo7-3-2 1.6563 0.38 0.44 0.30 0.60 0.90 0.025 0.025 0.70 0.90 0.15 0.30 1.65 2.00



QUALITY CONTROL:

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us

TORICH DIN EN 10297 Seamless Steel Tubes for Mechanical Application
