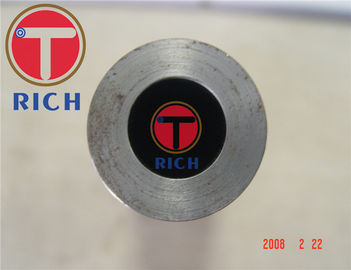

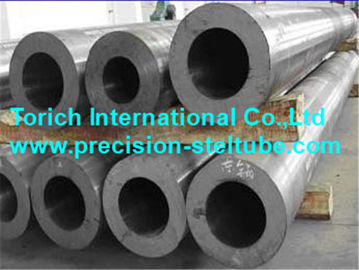

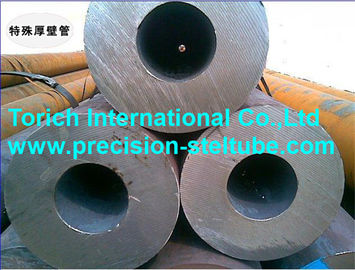

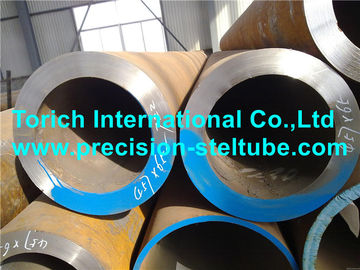

Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513

China Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513 supplier
Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513 supplier Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513 supplier Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513 supplier Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513 supplier

Large Image :  Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513

Product Details:

Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO 9001
Model Number: EN10305-1

Payment & Shipping Terms:

Minimum Order Quantity: 2 Ton
Price: 600 - 900 USD per Ton
Packaging Details: In hexagonal bundles packaging with woven In hexagonal shaps,the tubes will be well fixed,so it can avoid the damages when delievey .
Delivery Time: 5-8 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Ton per month
Contact Now
Detailed Product Description
Standard: ASTM, ASTM A519 Grade: 10#, 20#, 45#
Thickness: 0.5 - 50 Mm, 0.5 - 50 Mm Outer Diameter: 5 - 420 Mm
Certification: ISO9001, ISO9001 Usage: Hydraulic Cylinder
Special Pipe: Thick Wall Pipe Alloy Or Not: Non-alloy

Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513





EN10305-1/ASTM A513 Cold Drawn Heavy Wall Mechanical Seamless Honed Tube



Standard: ASTM A513

Grade Group: A53-A369

Thickness: 0.5 - 50 mm

Outer Diameter(Round): 5 - 420 mm

Surface Treatment: Bright

Technique: Cold Drawn, Cold Drawing

Material: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140

L: max12000mm

1. ASTM A519 Oil cylinder Seamless Carbon and Alloy Steel Mechanical Tubing
2. Steel Grade: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
3. Porudction Method: Cold drawing + Honing + Skiving Roller Bunish
4. Packing: Could be in Cartons or Wooden Box
We offer Cut to short lengths according to customer reqirement and drawings.





Chemical composition
Steel Grade C% Si% Mn% P% S% AL%
St30Al or E215 ≤0.10 ≤0.05 ≤0.7 ≤0.025 ≤0.025 ≥0.025
St35 or E235 ≤0.17 ≤0.35 0.4-1.2 ≤0.025 ≤0.025
St45 or E255 ≤0.21 ≤0.35 0.4-1.1 ≤0.025 ≤0.025
St52 or E355 ≤0.22 ≤0.55 ≤1.6 ≤0.025 ≤0.025







  Mechanical properties at room temperature
Delivery condition BK BKW GBK NBK (N)
steel Grade Rm Mpa (Min) A %(Min) Rm Mpa(Min) A %(Min) Rm Mpa(Min) A %(Min) Rm Mpa(Min) ReH Mpa(Min) A %(Min)
St30Al or E215 430 8 380 12 280 30 290 to 430 215 30
St35 or E235 480 6 420 10 315 25 340 to 480 235 25
St45 or E255 580 5 520 8 390 21 440 to 570 255 21
St52 or E355 640 4 580 7 450 22 490 to 630







Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513


























our certificateiso14001 200039iso9001 200010





QUALITY CONTROL

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A51312



Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A513M

In hexagonal bundles packaging with woven

In hexagonal shaps,the tubes will be well fixed,so it can avoid the damages when delievey .


Mechanical Seamless Honed Tube Cold Drawn Heavy Wall En10305-1 Astm A5131



FAQ





What is your Guarantee?


1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.



Do you have agent or distributor in our country?


1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.


How is your production capability?


1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment

How to get the sample?


1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.

What is your Payment Term?


1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation

Who are your customers?


1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc


How long will you react on our requirement?


1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!



Any more questions about your doubts, please feel free to send us your emails or call!
