Low Carbon Seamless DOM Steel Tube SAE J526 Round Shape For Automotive
Product Details
drawn over mandrel steel tubing
,drawn over mandrel steel tube
TORICH SAE J526 DOM Low-Carbon Seamless Steel Tube
Product Description:
SAE J526 DOM Carbon Seamless Steeel Tube:
Products Description:
16X1 20X2 DIN2391 ST35 CDS DOM Steel Tube
DIN2393 ST35 CDW DOM Steel Tube
DOM Steel Pipe
Steel Grade/Steel Material:
E155,E195,E235,E275,E355
Delivery Condition:
BK, BKW, BKS, GBK, NBK
Size Range:
OD: 4.0-420mm
WT:0.5-50mm
Length: max 12000mm
Our regularproduction size 60x50 42x3.2mm
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
ERW/Seamless tube and Cold Drawing or Cold Rolling Production
Chemical Requirements
| Properties | Values |
| Yield Strength, min (0.2% offset) | 170Mpa |
| Tensile Strength, min | 290Mpa |
| Elongation, mm | 14%min |
| Hardness (Rockwell 30T scale), max | 65 |
Tubing Dimensions And Tolerances
| Dash Size | Norminal Tubing ODmm | OD Basic mm | OD Tolerance ±mm | WT Basic mm | WT Tolerance ±mm |
| 2 | 3.18 | 3.18 | 0.05 | 0.64 | 0.13 |
| 3 | 4.76 | 4.78 | 0.08 | 0.71 | 0.13 |
| 4 | 6.35 | 6.35 | 0.08 | 0.71 | 0.08 |
| 5 | 7.94 | 7.92 | 0.08 | 0.71 | 0.08 |
| 6 | 9.53 | 9.53 | 0.08 | 0.71 | 0.08 |
| 7 | 11.11 | 11.13 | 0.10 | 0.76 | 0.08 |
| 8 | 12.70 | 12.70 | 0.10 | 0.76 | 0.08 |
| 8 | 12.70 | 12.70 | 0.10 | 0.89 | 0.09 |
| 9 | 14.29 | 14.27 | 0.10 | 0.76 | 0.08 |
| 10 | 15.88 | 15.88 | 0.10 | 0.89 | 0.09 |
Characteristic: Good concentricity Good surface quality
Good OD and ID tolerance High Precision
Stable quality Smooth Roughness
TORICH QUALITY ASSURANCE
Company Introduction:
TorichInternational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes.
Our main products:Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Tube.
Our factory was established since 1997, with the name of Haiyan SanxinSteel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, who are in great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have strong technician team and manufacturing capability.

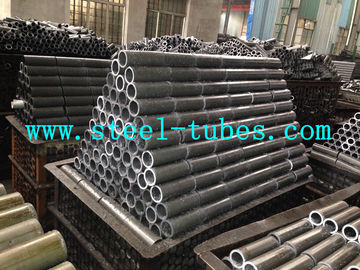

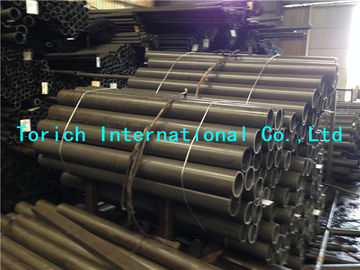

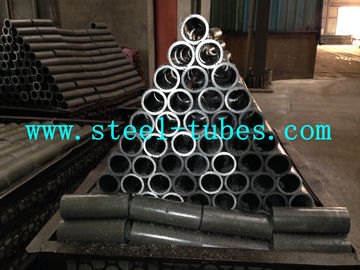

Product Pictures:
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
