GB/T 8162 42CrMo Alloy Steel Tube Cold Drawn Carbon Steel Alloy Steel Pipr For Mechanical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Titanium Pipes packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 50000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASTM B338/ASME SB338 |
|
Detail Information |
|||

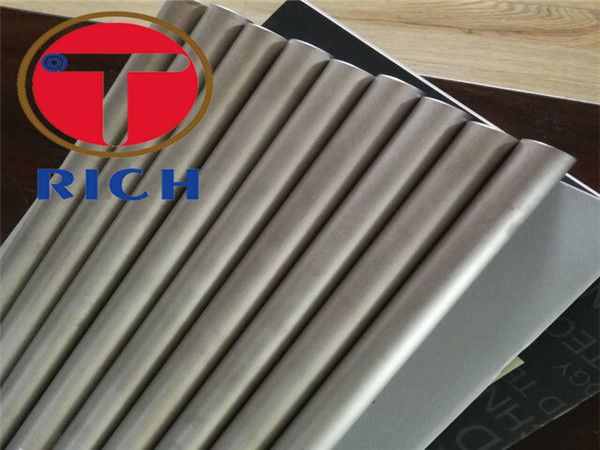

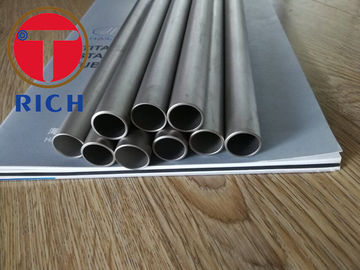

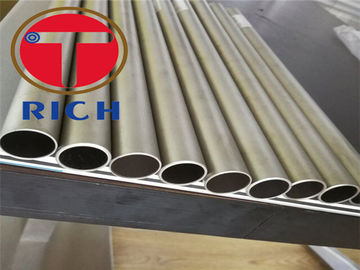

| Product Name: | Seamless Titanium And Titanium Alloy Tubes | Keyword: | Titanium Pipes |
|---|---|---|---|
| Standard: | ASTM B338/ASME SB338 | Surface: | Polishing |
| Material: | Gr1, Gr2, Gr7, Gr9, Gr12, Gr16 | Shape: | Round Shape |
| Length: | 15m Max | OD: | 5-89mm |
| WT: | 0.2-5.5mm | Usage: | Condenser And Heater-Exchange |
| High Light: | precision stainless steel tubing,seamless carbon steel tube |
||
Product Description
Standard: GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861, ASTM A370
Size range: OD: 5-89mm
WT: 0.2-5.2mm
Length: 15m max
Material: Gr1, Gr2, Gr7, Gr9, Gr12, Gr16
Usage: Condenser and Heater-Exchange
Chemical Composition%
| Grade |
N max |
C max |
H max |
Fe max |
O max |
Residual | Al | V | Pd | Mo | Cr |
Si max |
S max |
Mn max |
Cu |
Oth ers |
Ni | Ti | |
|
Each max |
Total max |
||||||||||||||||||
| Gr.1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| Gr.2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| Gr.3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| Gr.7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | 0.12-0.25 | - | - | - | - | - | - | - | - | balance |
| Gr.9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 0.1 | 0.4 | 2.5-3.5 | 2.0-3.0 | - | - | - | - | - | - | - | - | - | balance |
| Gr.12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | - | 0.2-0.4 | - | - | - | - | - | - | 0.6-0.9 | balance |
| Gr.16 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | 0.04-0.08 | - | - | - | - | - | - | - | 0.6-0.9 | balance |
| Grade | TS(Mpa) | YS(Mpa) | E(%), min |
| Gr.1 | ≥240 | 138-310 | 24 |
| Gr.2 | ≥345 | 275-450 | 20 |
| Gr.3 | ≥450 | 380-550 | 18 |
| Gr.7 | ≥345 | 275-450 | 20 |
| Gr.9 | ≥620 | ≥483 | 15 |
| Gr.12 | ≥483 | ≥345 | 18 |
| Gr.16 | ≥345 | 275-450 | 20 |
Characteristic:
Good concentricity High Precision
Good surface quality Stable quality
Good OD and ID tolerance Smooth Roughness
TORICH QUALITY ASSURANCE
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
