DIN 2393 St37-2 Welded Steel Tube Precision Cold Drawn Welded Steel Pipe For Sleeve
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5 TONS | Price : | USD 600-1250 per TON |
|---|---|---|---|
| Packaging Details : | oil antirust+in hexagonal bundles | Delivery Time : | 35-60 days after order confirmed |
| Payment Terms : | L/C, T/T | Supply Ability : | 60000 Per year |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001-2008 ISO 14001 EN 10204.3.1 KR LR | Model Number: | SAE J525 |
|
Detail Information |
|||
| Material: | Low Carbon Steel | Diemension: | 6-88.9mm *1-15mm Length According To Customer Order |
|---|---|---|---|
| Shape: | Round | Standard: | SAE J525 |
| Production Method: | Welded And Cold Drawn | Delivery Condition: | Annealed |
| Applications: | For Bending And Flaring To Auto Parts | ||
| High Light: | welded steel pipe,electric resistance welded steel tube |
||
Product Description

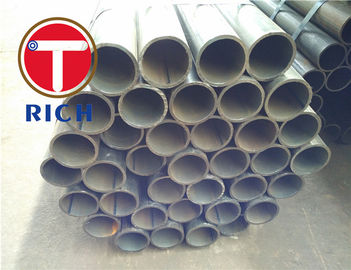

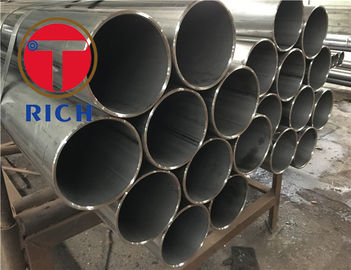

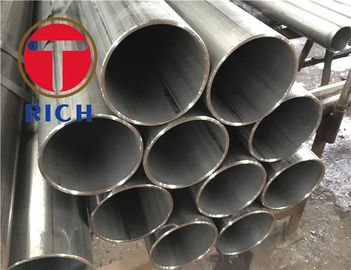

SAE J525 ERW / DOM Welded Steel Tube Low Carbon Annealed pipes for Automotive Industry
Applications: for Bending and Flaring to auto parts
Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order
Material: SAE1010, SAE1020, SAE1026 etc.
Production: ERW + DOM
Description:
MechaniCal tubing made from hot or cold-rolled steel.
Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing
Advantage:
Good concentricity, Better price than seamless.
Specifications:
| Table 1- TUBING OUTSIDE DIAMETER TOLERANCE | |||||||
| Nominal Tubing OD mm |
Tolerance OD ±mm |
Tolerance ID ±mm |
|||||
| Up to 9.50 | 0.05 | 0.05 | |||||
| Over 9.50 to 15.88 inclusive | 0.06 | 0.06 | |||||
| Over 15.88 to 50.80 inclusive | 0.08 | 0.08 | |||||
| Over 50.8 to 63.50 inclusive | 0.10 | 0.10 | |||||
| Over 63.50 to 76.20 inclusive | 0.13 | 0.13 | |||||
| Over 76.20 to 100.00 inclusive | 0.15 | 0.15 | |||||
| WT tolerance shall be not more than 10% | |||||||
| Table 2- TUBING WALL THICKNESS TOLERANCE | |||||||
| Nominal Wall Thickness |
Nominal OD Through 22mm ±mm |
Nominal OD 22-48mm ±mm |
Nominal OD 48-100mm ±mm |
||||
| 0.89 | 0.05/0.05 | 0.05/0.05 | 0.05/0.05 | ||||
| 1.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.25 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.50 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.65 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.11 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.410 | 0.05/0.05 | 0.05/0.08 | 0.08/0.08 | ||||
| 2.500 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 2.770 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.000 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.050 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.40 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 3.75 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 4.00 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.19 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.57 | - | 0.10/0.10 | 0.08/0.13 | ||||
| 5.00 | - | 0.10/0.13 | 0.10/0.13 | ||||
| Table 2- CHEMICAL REQUIREMENTS | |||||||
| Element | % | ||||||
| Carbon | 0.06-0.18 | ||||||
| Manganese | 0.30 to 0.60 | ||||||
| Phosphprus | 0.040 max | ||||||
| Sulfur | 0.050 max | ||||||
| Table 3- MECHANICAL PROPERTIES | |||||||
| Properties | Value | ||||||
| Yield Strength,min | 170 Mpa | ||||||
| Ultimate Strength,min | 310 Mpa | ||||||
| Elongation in 50mm, min | 35% | ||||||
| Hardness ( Rockwell B),max | 65.00 | ||||||
Applications:
For mechanical bending and flaring application.
Competitive Advantage:
Good source of raw material from Bao Steel.
Prompt delivery time according to PO and agreement.
Produce exactly according to standard and customer's requirement.
Experienced export team for customer service, quick reply within 24 hours.

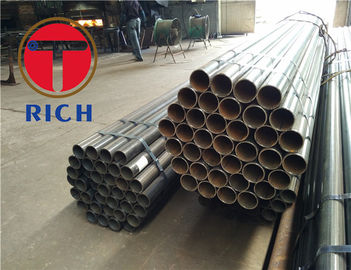

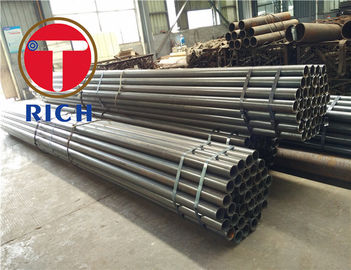

Production pictures:
Shipment and Container:
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
