ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers

Minimum Order Quantity : 5 tons Price : USD1200
Packaging Details : In bundles with seaworthy packing Delivery Time : 45-60 days
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 60000tons/year
Place of Origin: CHINA Brand Name: TORICH
Model Number: ASTM A192

Detail Information

Certification: ISO9001, ISO14001,TS16949 Product Name: ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
Standard: ASTM A192 Grade: ASTM A192
Technique: Cold Drawn Alloy Or Not: No
Secondary Or Not: Non-secondary Specical Pipe: Boiler Tube
Application: Boilers/Superheaters Surface Treatment: Oiled
High Light:

high carbon steel tube

,

heat exchanger tubes

Product Description

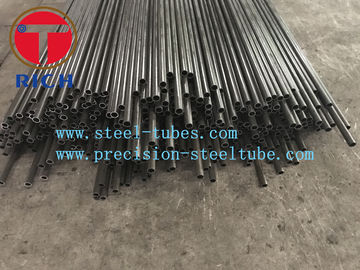

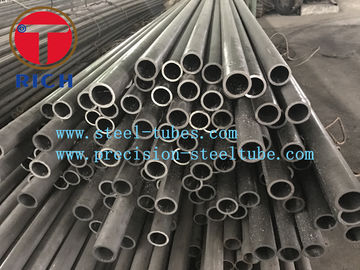

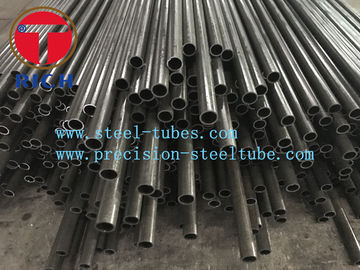

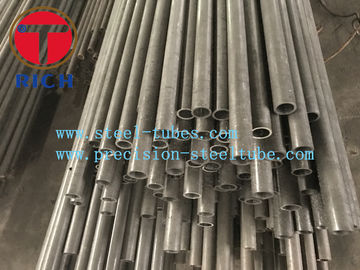

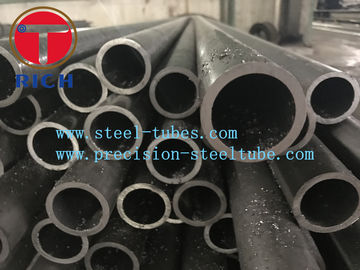

ASTM A192 Seamless Carbon Steel Boiler Tubes for High Pressure Boilers



Material: Carbon Steel



Production: Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.



Size range: O.D.: 12.7-177.8mm W.T.: 1-25.4mm L: according to customer requirement



Applications:

for Boilers,Superheaters,

Heat-Exchangers,

High-pressure Boilers,

Steam Boilers

Cold Condensers and High-Pressure Services,

High-Temperature Services for Boiler Constructions



Heat treatment:
Hot finished tubes need not be heat treated.

Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher



Steel Grade and Chemical Compositions:

C 0.06-0.18
Mn 0.27-0.63
P ≤0.035
S ≤0.035
Si ≤0.25



Mechanical Properties
Tensil Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%



Hardness

Brinell Hardness Rockwell Hardness Number
WT≥0.200in(5.1mm) WT<0.200in(5.1mm)
137HRB 77HRB


Tests and Inspection:
Mechanical Testing:

Flattening Test

Flaring Test

Flange Test

Hardness Test

Hydrostatic Test


Boiler steel tube  Seamless boiler steel tube



ASTM A192 boiler steel tube  carbon seamless steel boiler tube
