Torich Welded Tube Machining Ecc Red Stainless Steel Gb/t12459 Dn15 - Dn1200
Product Details
thin wall steel tubing
,low carbon steel pipe

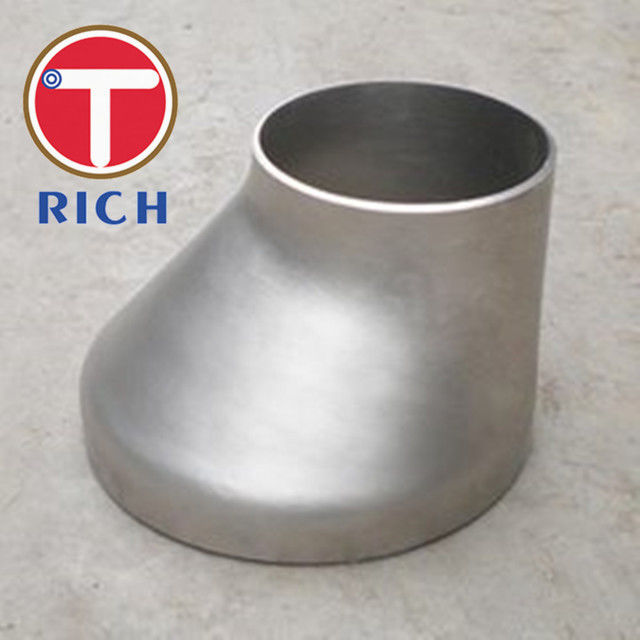

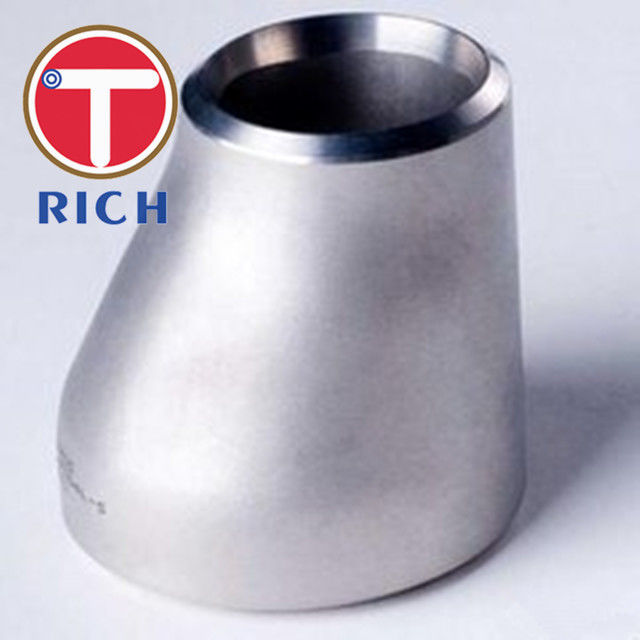

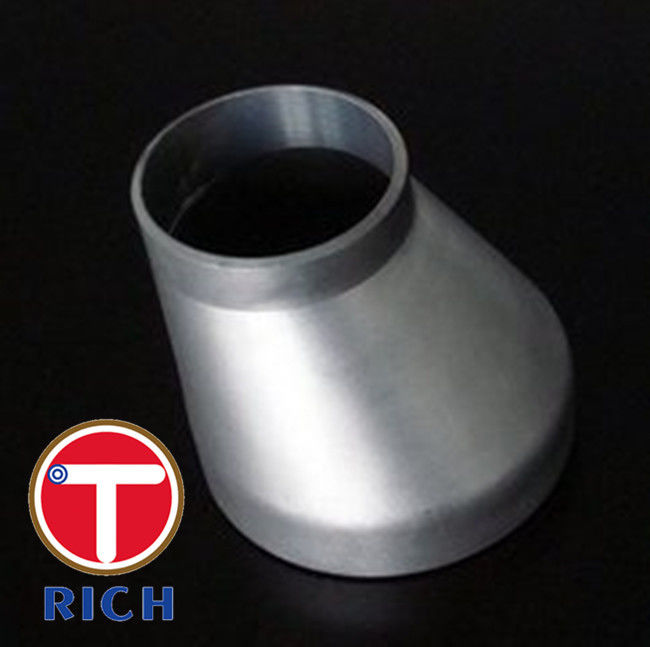

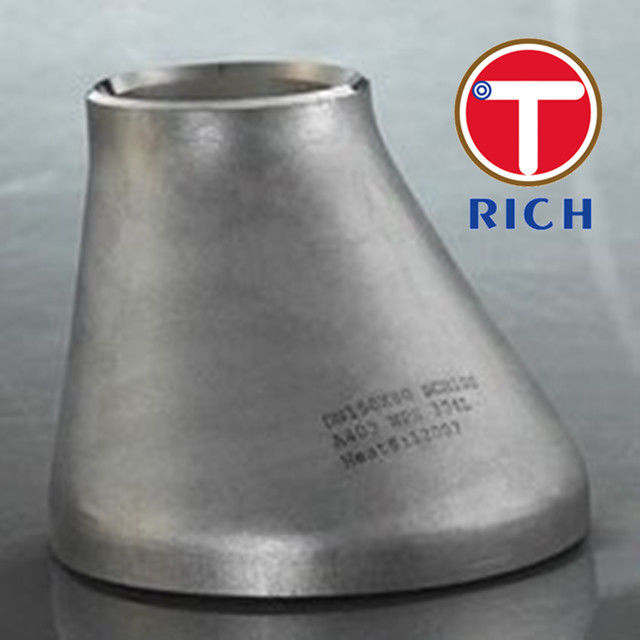

TORICH GB/T12459 Welded Stainless Steel ECC RED DN15-DN1200
TORICH GB/T12459 Welded Stainless Steel ECC RED DN15-DN1200
Standard: GB/T 12459,GB/T13401,SH3408,SH3409, HG/T21635, HG/T21631, ASME B16.9, MSS SP-43, DIN2605,JIS B2313
Welded: 1/2"-48" DN15-DN1200
Seamless: 1/2"-24" DN15-DN600
Material: 304/L,316/L,321/L,317/L,347/H,904L,310S,Duplex2205/S31803/F51, 2507/S32750/F53
WT: SCH5S-XXS
Usage: Machinery Parts
| Dorminal diameter | OD | End to end | Approx weight | |
| DN | PNS | D1xD2 | H | SCH5S |
| 20x15 | 3/4x1/2 | 25X18 26.7X21.3 | 38 | 0.03 0.04 |
| 25x20 | 1x3/4 | 32X25 33.4X26.7 | 51 | 0.06 0.06 |
| 32x25 | 1.1/4x1 | 38X32 42.2X42.2 | 51 | 0.07 0.08 |
| 40x32 | 1.1/2x1.1/4 | 45X38 48.3X33.4 | 64 | 0.11 0.11 |
| ... | ... | ... | ... | ... |
| 900x850 | 36x34 | 914X864 | 610 | -- |
Characteristic:
Good concentricity High Precision
Good surface quality Stable quality
Good OD and ID tolerance Smooth Roughness
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
