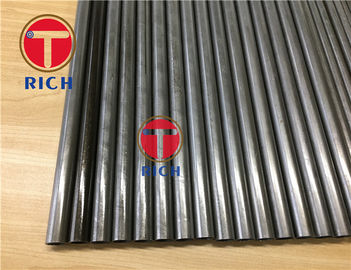

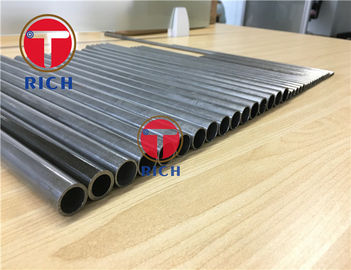

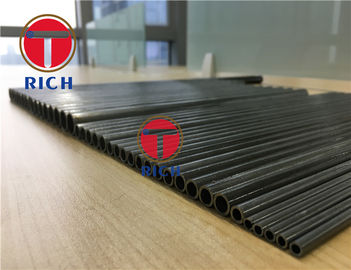

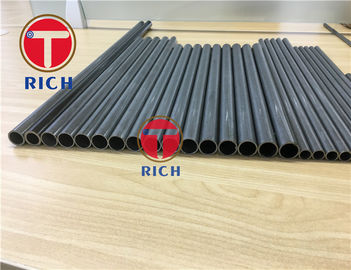

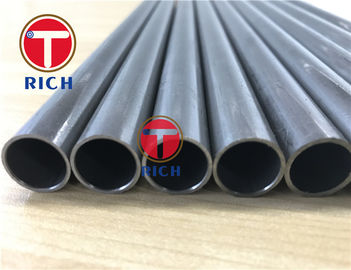

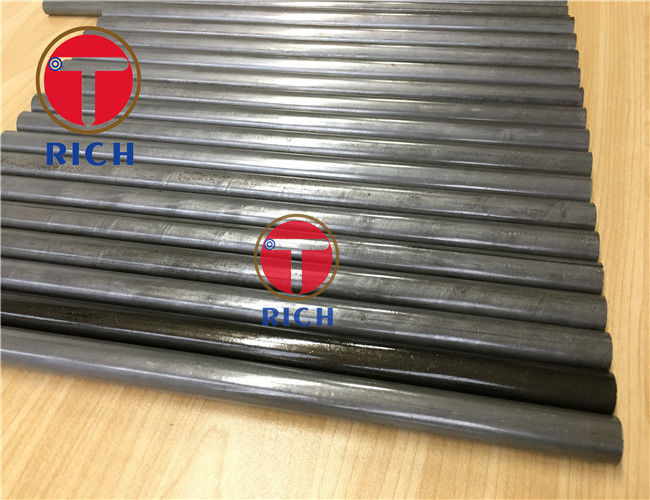

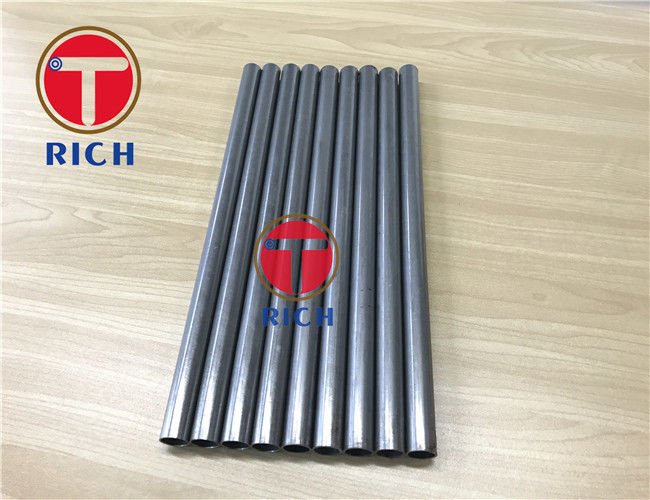

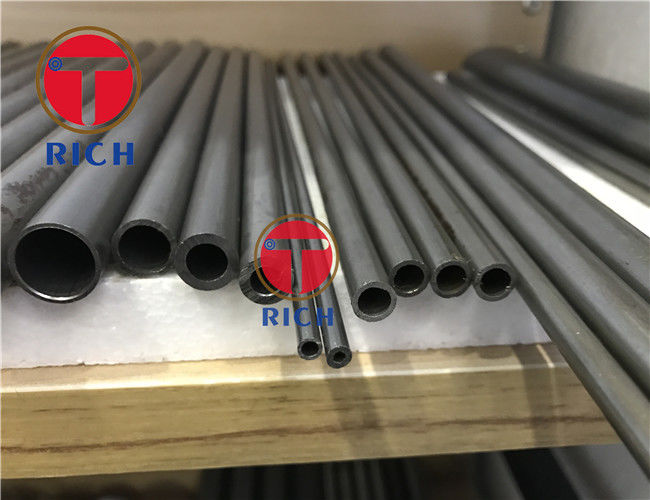

A179 A192 Cold Drawn Seamless Carbon Steel Tube For Heat Exchanger And Condenser
Product Details
cold drawn seamless tube
,cold drawn steel tube
A179 A192 Cold Drawn Seamless Carbon Steel Tube For Heat Exchanger And Condenser
| Product Name:: | Torich Cold Drawn Seamless Alloy Steel Tube With Carbon ASTM A179 SA178, A179, A192, A210, SA213, SA214 | Material:: | SA178, A179, A192, A210, SA213, SA214 |
|---|---|---|---|
| Surface:: | With Anti Rust Oil | Application:: | Structure, High Temperature, Liquid Transportation Pipe And Tubes For High Pressure Boiler |
| Shape:: | Round | OD:: | 3-1200mm |
| WT:: | 0.5-200mm | Length:: | 4-12.5m |
| Tolerance:: | According To The Following Tables Or Customers’ Request. | Spec:: | General Length:4-12.5m |
ASTM A179 Seamless Cold Drawn Low Carbon Steel Heat Exchanger Tubes and Condenser Tubes
Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger Tubes and Condenser Tubes
Applications:
- Superheaters
- For Boilers
- Tubular Heat-Exchangers
- Condensers
- Heat transfer apparatus
U bend Tubes according to Customer request
Material: Low Carbon Steel
Production: Seamless Cold Drawn
Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement.
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 | |
| Mn | 0.27-0.63 | |
| P | ≤0.035 | |
| S | ≤0.035 |
Mechanical Properties:
Tensile Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%
Hardness: ≤72HRB
Heat Treatment:
Tubes are heat treated after the final cold draw pass at a temperature of 1200℉(650℃) or higher
Surface Finish:
Finish Tubes are free of scale.
We have normal heat treatment annealing with black surface.
Have bright annealing with grey and bright surface.
Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test
PACKAGING DETAILS:
Packing in wooden box,hexagonal bundles or other seaworthy ways.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
-
