High Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
Basic Properties
Place of Origin:
Zhejiang China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 TS 16949
Model Number:
GB/T 3093
Trading Properties
Minimum Order Quantity:
5 Ton
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
40000 Ton/Year
Product Summary
High-Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093 Spec:Material:10A 20A Q345A Size Range:OD:4-1200mm WT:0.3-200mm General Length:1.5-6mTolerance:According to the following tables or customers’ request. Characteristic:Technical RequirementsChemical component:Name GradeChemical component...
Product Details
Highlight:
precision stainless steel tubing
,seamless carbon steel tube
Product Name:
High-Pressure Seamless Steel Tubes For Diesel Engine GB/T 3093
Material:
10A 20A Q345A
Surface:
With Anti Rust Protection
Application:
Diesel Engine
Shape:
Round
OD:
4-1200mm
WT:
0.3-200mm
Length:
1.5-6m
Product Description
High-Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
Spec:
Material:10A 20A Q345A
Size Range:OD:4-1200mm
WT:0.3-200mm
General Length:1.5-6m
Tolerance:
According to the following tables or customers’ request.
Characteristic:Technical Requirements
Chemical component:
Name
| Grade | Chemical component(mass fraction )% | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | ||
| Max | |||||||||
| U20103 | 10A | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | 0.03 | 0.03 | 0.15 | 0.30 | 0.20 |
| U20203 | 20A | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | 0.03 | 0.03 | 0.25 | 0.30 | 0.20 |
| L03451 | Q345A | 0.20Max | 0.55Max | 1.00-1.60 | 0.03 | 0.30 | 0.30 | 0.30 | 0.20 |
Mechanical Properties:
| Grade | Tensile strength /Mpa | Yeild strength/Mpa | Elongation/% |
| Max | |||
| 10A | 335-470 | 205 | 30 |
| 20A | 390-540 | 245 | 25 |
| Q345A | 470-630 | 345 | 22 |
Producing Method:cold drawn
Technical Delivery Conditions:Cold drawn + Heat treatment
Widely used in the field of/Application:Diesel engine

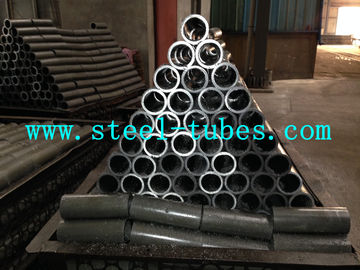

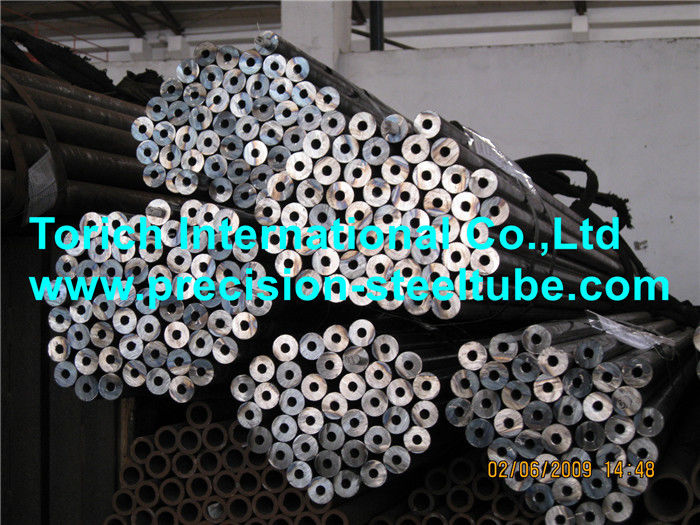

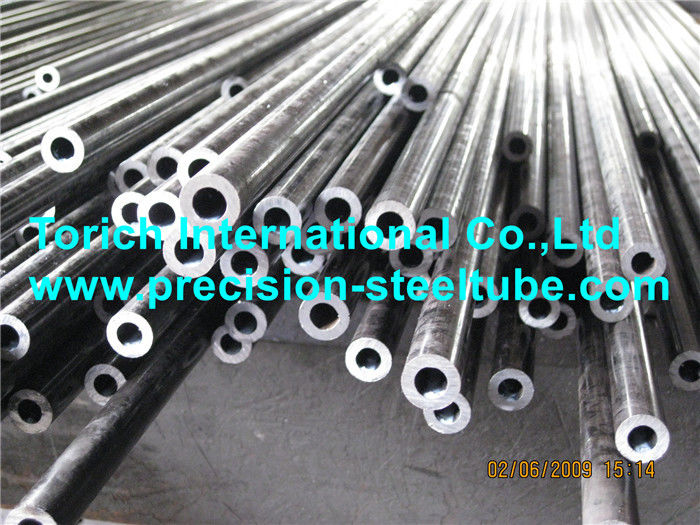

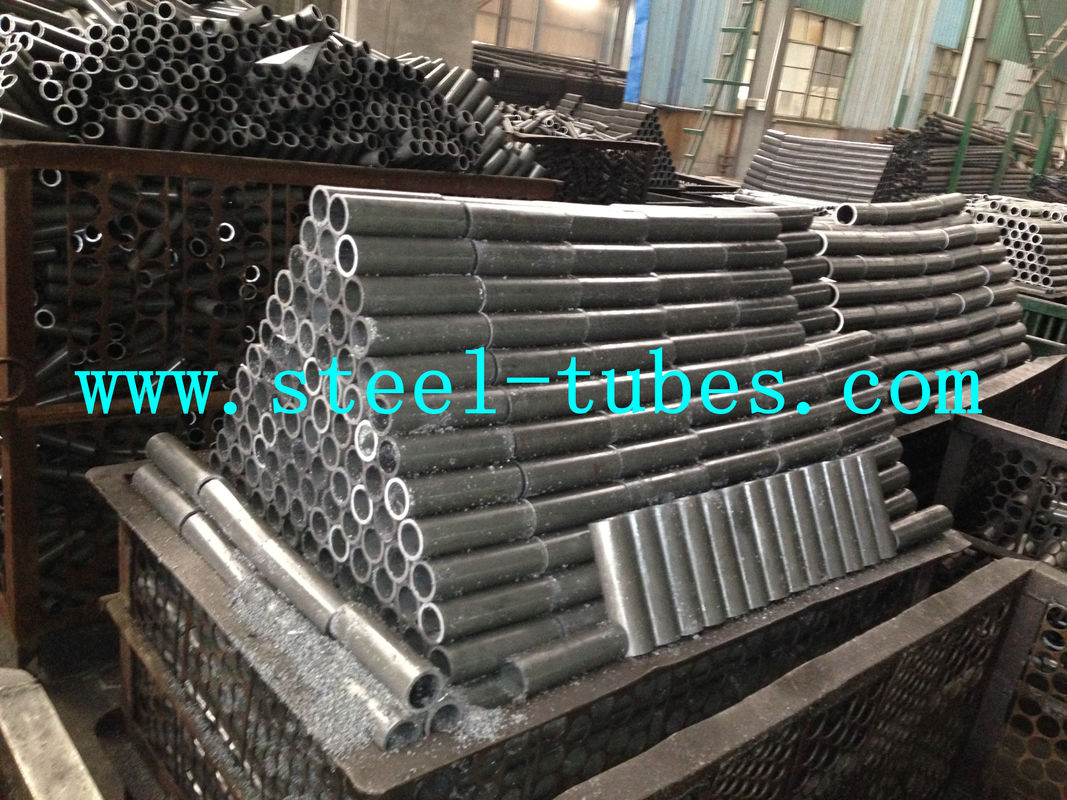

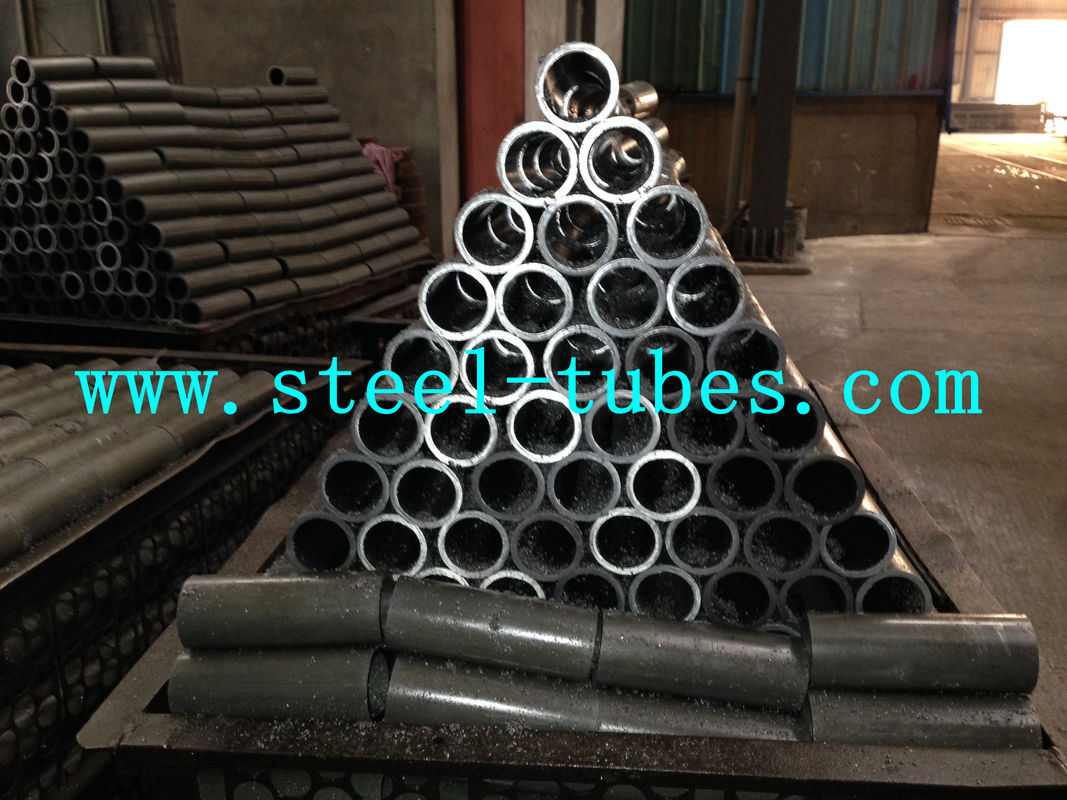

Product Images:
