GOST 9567-75 20# Cold drawn Precision Steel Pipes Seamless Steel Tube For Machinery Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 Ton | Price : | negotiable |
---|---|---|---|
Packaging Details : | Packing in wooden, hexagonal box or other seaworthy ways | Delivery Time : | 30 days |
Payment Terms : | T/T L/C D/P D/A WesternUnion MoneyGram Others | Supply Ability : | 60000 Ton/Year |
Place of Origin: | CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001 ISO14001 | Model Number: | GB/T8163 |
Detail Information |
|||
Product Name: | GB8163/T Cold Drawn Seamless Carbon Steel Tube | Type: | Seamless Carbon Steel Ppie |
---|---|---|---|
Usage: | Fluid Pipe | OD: | 4-1200mm |
WT: | 0.5-200mm | Length: | 3-1.52m |
Material: | Q345,Q295 | Surface: | Oiled |
Shape: | Round | Terms Of Trade: | CIF FOB CFR |
High Light: | seamless steel pipe,precision stainless steel tubing |
Product Description

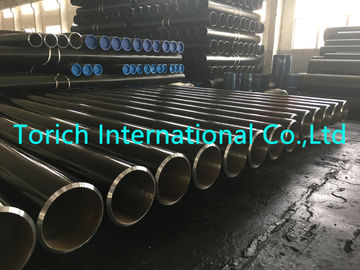

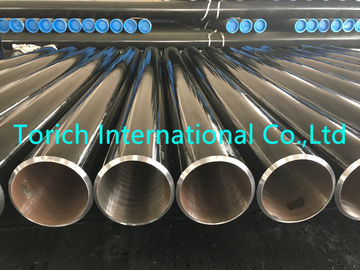

GB8163/T Cold Drawn Seamless Carbon Steel Tube
Heat Treatment: Hot Rolling & Cold Drawn
Tolerance of the OD &WT:
OD Tolerance:
Production Method | OD Tolerance |
Hot Rolling(Extrusion) | ±1% or ±0.50mm |
Cold Drawn(Cold Rolled) | ±1% or ±0.30mm |
Tolerance for wall thickness:
1.Wall thickness tolerance of Hot Rolling steel tube:
Production Method | OD (DN) | WT/OD | Tolerance |
Extruded tube | ≤102 | / | ±12.5% or ±0.40mm |
>102 | ≤0.05 | ±15% or ±0.40mm | |
>0.05-0.10 | ±12.5% or ±0.40mm | ||
>0.10 |
+12.5% -10% |
||
Heat expanding steel tube | / | ±15% |
2.Wall thickness tolerance of Cold Drawn(Cold Rolled) steel tube:
Production Method | WT | Tolerance |
Cold Drawn(Cold Rolled) steel tube | ≤3 | +15%/-10% or ±0.40mm |
>3 |
+12.5% -10% |
Bending tolerance:
WT≤15mm, Bending≤1.5mm/m
WT>15mm~30mm, Bending≤2.0mm/m
WT>30mm/OD≥351mm, Bending≤3.0mm/m
Ovality and Wall unevenness:
The ovality and wall unevenness should be no more than 80% of the OD and wall thickness.(Or according to customer’s request)
mechanical property
Steel Grade |
Tensile strength Rm N/mm2(MPa) |
Yield Strength Rp0.2 N/mm2(MPa) |
Elongation A % |
|||
Wall Thickness | ||||||
≤16mm | >16~30mm | >30mm | ||||
10 | ≥335 | ≥205 | ≥195 | ≥185 | ≥24 | |
15 | ≥375 | ≥225 | ≥215 | ≥205 | ≥22 | |
20 | ≥410 | ≥245 | ≥235 | ≥225 | ≥20 | |
25 | ≥450 | ≥275 | ≥265 | ≥255 | ≥18 | |
35 | ≥510 | ≥305 | ≥295 | ≥285 | ≥17 | |
45 | ≥590 | ≥335 | ≥325 | ≥315 | ≥14 | |
20Mn | ≥450 | ≥275 | ≥265 | ≥255 | ≥20 | |
25Mn | ≥490 | ≥295 | ≥285 | ≥275 | ≥18 | |
Q235 | A | 375~500 | ≥235 | ≥225 | ≥215 | ≥25 |
B | ||||||
C | ||||||
D | ||||||
Q275 | A | 415~540 | ≥275 | ≥265 | ≥255 | ≥22 |
B | ||||||
C | ||||||
D | ||||||
Q295 | A | 390~570 | ≥295 | ≥275 | ≥255 | ≥22 |
B | ||||||
Q345 | A | 470~630 | ≥345 | ≥325 | ≥295 | ≥20 |
B | ||||||
C | ≥21 | |||||
D | ||||||
E | ||||||
Q390 | A | 490~650 | ≥390 | ≥370 | ≥350 | ≥18 |
B | ||||||
C | ≥19 | |||||
D | ||||||
E | ||||||
Q420 | A | 520~680 | ≥420 | ≥400 | ≥380 | ≥18 |
B | ||||||
C | ≥19 | |||||
D | ||||||
E | ||||||
Q460 | C | 550~720 | ≥460 | ≥440 | ≥420 | ≥17 |
D | ||||||
E |
Test:
