EN10305-4 DOM Steel Tube Seamless Cold Drawn Tubing Plastic Pipe Cap
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
TS16949
Model Number:
EN10305-4
Trading Properties
Minimum Order Quantity:
5 ton
Price:
1200-1300 USD/ton
Payment Terms:
L/C, T/T
Supply Ability:
30000 tons/year
Product Summary
Products Description: EN10305-4 Seamless Cold Drawn Tubing DOM Steel Pipe for Hydraulic and Pneumatic Power Systems Steel Grade/Steel Material: Chemical composition(cast analysis)a Steel Grade % by mass Name Number C max Si max Mn max P max S max Altot min E215 1.0212 0.10 0.05 0.70 0.025 0.015 0...
Product Details
Highlight:
drawn over mandrel steel tube
,drawn over mandrel steel tubing
Production:
Cold Drawn
Heat Treatment:
+N
Surface:
Customers't Requirement
Material:
E215, E235, E355
End Protector:
Plastic Pipe Cap
Usage:
Hydraulic And Pneumatic Power Systems
Type:
Seamless Steel Tube
Shape:
Round Shape
Product Description
Products Description:
EN10305-4 Seamless Cold Drawn Tubing DOM Steel Pipe for Hydraulic and Pneumatic Power Systems
Steel Grade/Steel Material:
Chemical composition(cast analysis)a
| Steel Grade | % by mass | ||||||
| Name | Number | C max | Si max | Mn max | P max | S max | Altot min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.015 | - |
| E355b | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.015 | - |
| a Elements not included in this table (but see footnote b) shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steel making process. b Additions of Nb, Ti and V are permitted at the discretion of the manufacturer. The content of these elements shall be reported. | |||||||
Mechanical properties at the room temperature
| Steel Grade | Yield strengtha | Tensile strength | Elogation | |
| Name | Number | ReH min Mpa | Rm min Mpa | A min % |
| E215 | 1.0212 | 215 | 290 to 430 | 30 |
| E235 | 1.0308 | 235 | 340 to 480 | 25 |
| E355 | 1.0580 | 355 | 490 to 630 | 22 |
| a For tubes with outside diameter ≤ 30 mm and wall thickness ≤ 3 mm, the ReH minimum values are 10 MPa lower than the values given in this table. NOTE: The steel grades defined in this part of EN 10305 have an intrinsic minimum transverse impact energy of 27 J at 0 °C. | ||||
Delivery Condition:
+N
Size Range:
OD: 5.0-220mm
WT:0.5-30mm
Length: max 7000mm
DOM Steel Tube Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Seamless tube and Cold Drawing or Cold Rolling Production

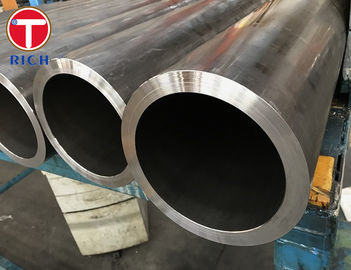

Raw MaterialSteel Tube:

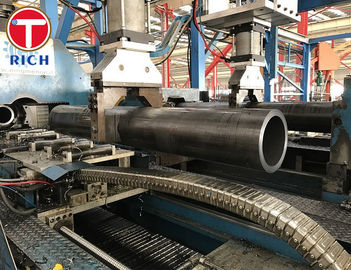

Production Line Cold Drawing:
Quality Inspection for Dimension:

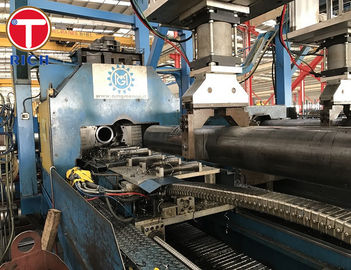

Eddy Current Test and Ultrasonic Test:
Quality Inspection in lab:
Packing:
EN10305-4 Seamless Cold Drawn Tubing DOM Steel Pipe for Hydraulic and Pneumatic Power Systems
